Jukebox Documentation

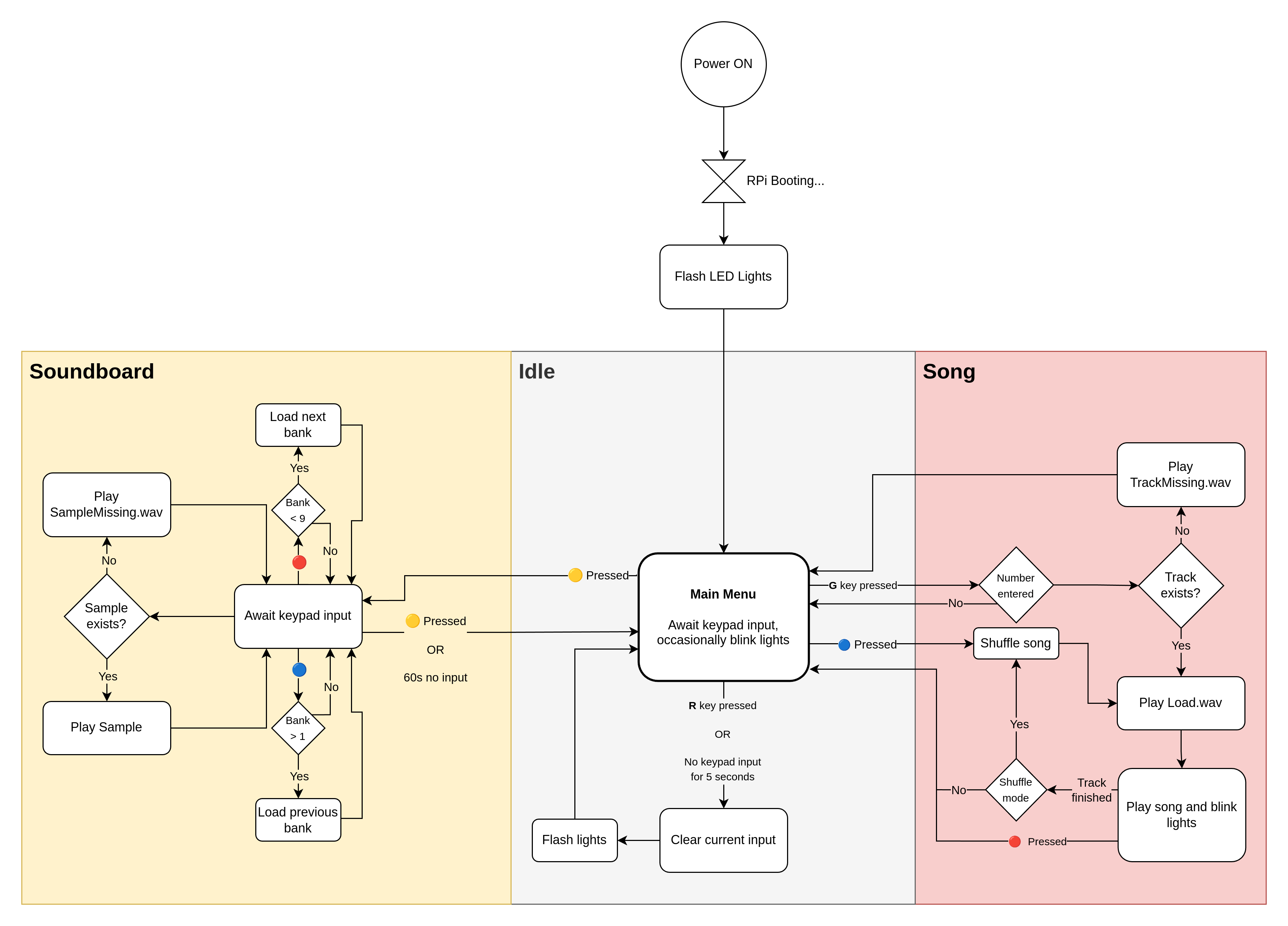

Flowchart

Here's a high level overview of the jukebox's functionality:

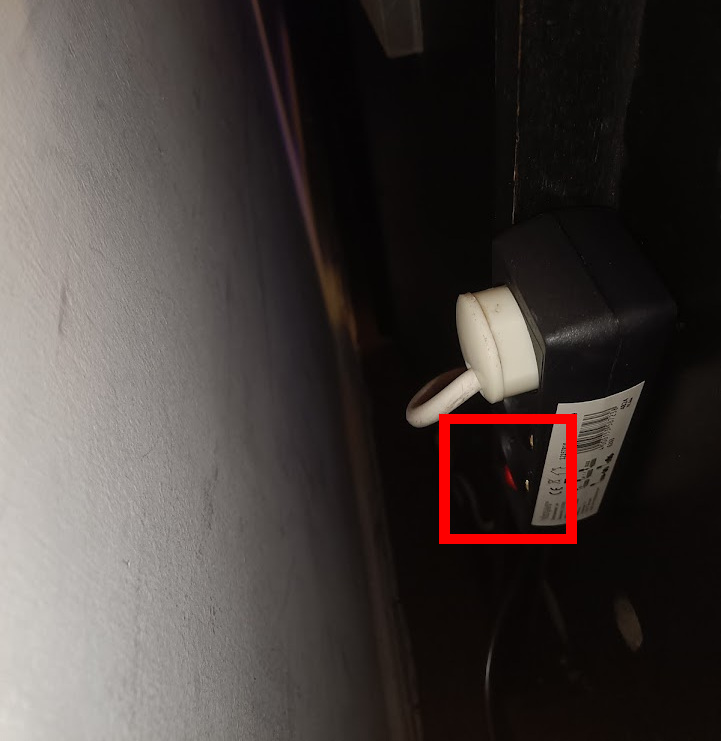

To power the jukebox on or off, flip the switch located on the power strip at the back-left side.

Note: It is normal to hear a loud "pop" sound when flipping the switch.

Once powered on, the jukebox will require a short period to boot. It is ready to use when the lights begin flashing.

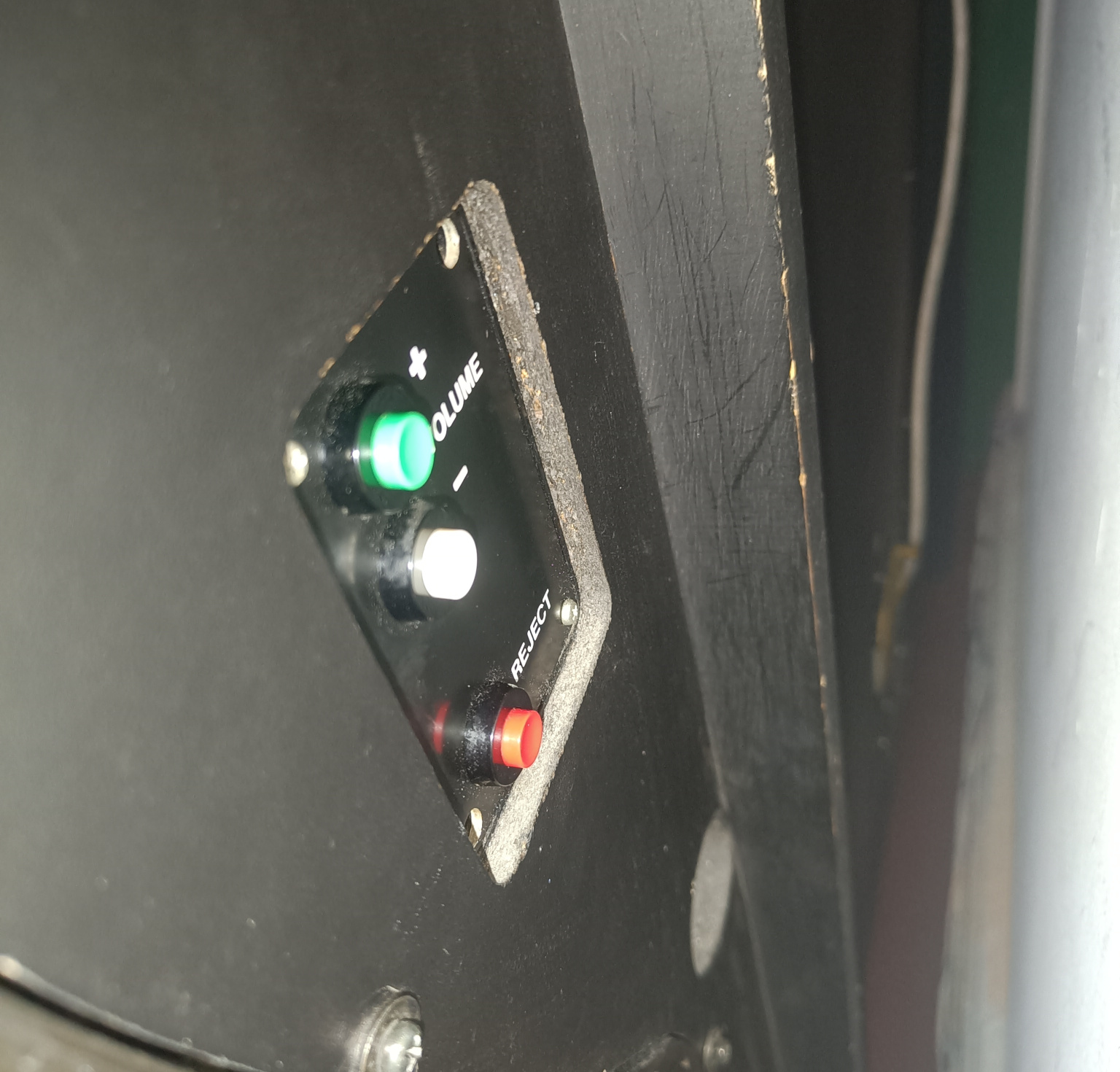

At boot, the jukebox will start at its lowest volume. To adjust the volume, use the volume buttons located at the back-right side.

Enter the song number using the keypad. To confirm your selection, press the G key. The jukebox will begin playing your chosen song.

To cancel your current entry, press the R key.

Note: Your input will also automatically clear if no keys are pressed for 5 seconds.

To shuffle through the songs, press the 🔵 BLUE key. The jukebox will play random songs from the library until a song is aborted (see next section).

To stop a song currently playing, press the 🔴 RED key. This will immediately return you to the main menu.

To activate soundboard mode, press the 🟡 YELLOW key. In this mode, the keypad functions as a soundboard.

The jukebox has 10 soundboard banks. Upon entering soundboard mode, Bank 1 is automatically selected. Switch between banks using:

To exit soundboard mode, press the 🟡 YELLOW key again. Alternatively, soundboard mode will automatically exit after 60 seconds of inactivity.

To upload songs to the jukebox:

This shall remain a secret ;)
